RM-PLA High-Performance Linear Actuator for Precision Applications: Reliable, Fast, and Accurate Force Control

2 pieces/sets
MOQ
Negotiable
Price
RM-PLA High-Performance Linear Actuator for Precision Applications: Reliable, Fast, and Accurate Force Control
Features Gallery Product Description Request A Quote
Features
Specifications
Stroke(mm): 100
Lead (mm): 2
Max.speed（mm/s）: 100
Max. Pushing Force （N）: 300
Max. Load Capacity Horizontal: 3
Max. Load Capacity Vertical: 1.5
Repeat Positioning Accuracy (mm): ±0.02
Permissible Load Torque (N.m): MR: 7.9, MP:4.0, MY:5.8
Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltag(V)e: DC24±10%
Rated Current (A): 2
Weight (kg): 1.1
Usage Environment: 0~40℃、< 85%RH ( Without Condensation)
Protection Class IP: IP40
Outgoing Line Method: Horizontal Wiring
Highlight:

Reliable Linear Actuator

,

High Performance Linear Actuator

,

Precision Applications Linear Actuator
Basic Infomation
Place of Origin: China
Brand Name: RobustMotion®
Certification: CE, RoHs
Model Number: RM-PLA-11-100-2-H
Payment & Shipping Terms
Delivery Time: 5-15work days
Payment Terms: Bank transfer
Supply Ability: TBC
Product Description

Accurate And Stable Positioning Straight Platform Industrial linear Actuator RM-PLA-11-100-2-S0028

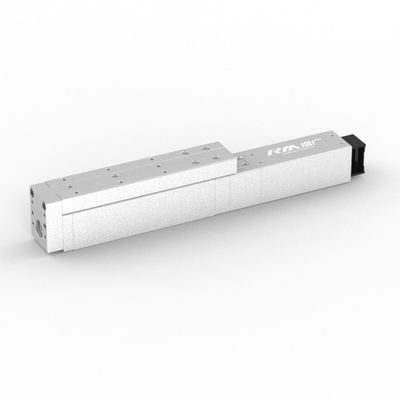

Straight platform-type linear actuator (RM-PLA-11-100-2-H) is an innovative product that combines linear motion and platform-type work platform, with high load-bearing capacity and stability, and can precisely control position and adaptive push. It has a push stroke of 100mm, a lead of 2, a horizontal wire outlet mode. It also has the following features: parallel installation, high repeatability, high speed stability, high rigidity, etc. It can perform fitting, pressing, correcting, linear transmission and other operations on the workpiece by linear pushing and pressing on the automated production line.



Specifications
Stroke(mm): 100
Lead (mm): 2
Max.speed(mm/s): 100
Max. Pushing Force (N): 300
Max. Load Capacity Horizontal: 3
Max. Load Capacity Vertical: 1.5
Repeat Positioning Accuracy (mm): ±0.02
Permissible Load Torque (N.m): MR: 7.9, MP:4.0, MY:5.8
Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltag(V)e: DC24±10%
Rated Current (A): 2
Weight (kg): 1.1
Usage Environment: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
Outgoing Line Method: Horizontal Wiring
