RM-GB ‎ Electric Parallel Gripper with Large Gripping Force for Gripping, Measuring and Testing

2 pieces/sets
MOQ
Negotiable
Price
RM-GB ‎ Electric Parallel Gripper with Large Gripping Force for Gripping, Measuring and Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Output Cable: Side Wiring
Outgoing Line Method: Vertical Wiring
Stroke (mm): 40
Max.Gripping Force (N): 110
Max.speed (mm/s): 80
Repeat Positioning Accuracy (mm): ±0.05
Backlash (mm): < 0.1 ( Single-Side)
Permissible Load Torque: MR:8.0,MP:5.9,MY:5.9
Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Interface: Input 2 Points(NPN), Output 3 Points(NPN)
Rated Voltage (V): DC24±10%
Rated Current(A): 2
Weight (kg): 1.1
Usage Environment: 0~40℃、< 85%RH ( Without Condensation)
Type: Electric Parallel Gripper
Highlight:

Servo-Driven Electric Parallel Gripper

,

Electric Parallel Gripper High Stiffness

Basic Infomation
Place of Origin: China
Brand Name: RobustMotion®
Certification: CE, RoHs
Model Number: RM-GB-11-40-2-1-V
Payment & Shipping Terms
Delivery Time: 5-15work days
Payment Terms: Bank transfer
Supply Ability: TBC
Product Description

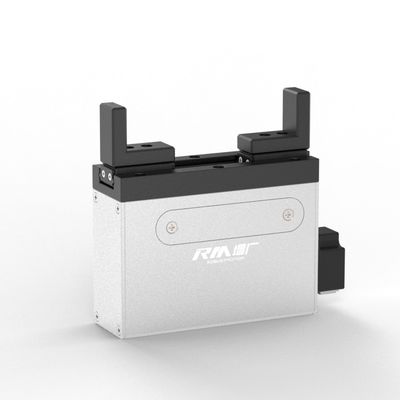

Servo-Driven Gripper With High Stiffness, Anti-Drop Feature, And Drop Detection Capability RM-GB-11-40-2-1-V

RM-GB Quality Assurance IP40 Servo-Driven Electric Parallel Gripper With High Stiffness

Servo gripper(ITG) (RM-GB-17-30-2-2-S0028-ITG) is an intelligent fixture with built-in controller. It shows excellent performance with its powerful clamping force and efficient control mode. It has the following outstanding advantages:

·High rigidity, high load, high precision, high reliability, ensuring the stability and durability of the fixture;
·Diverse strokes, complete specifications and models, from micro to heavy-duty, everything you need, meeting different needs;
·Compatible with various collaborative robots and industrial robots, completing assembly, transportation, stacking and other processes for different weight items. Its clamping stroke is 30mm, lead is 2, wire outlet position is bottom, wire outlet mode is transfer wire and wire length is 2.8m.

Servo gripper(ITG) (RM-GB-17-30-2-2-S0028-ITG)’s maximum effective load is up to 7 kg, 2-3 times its own weight, and its maximum clamping force is 350N, leading the way among similar products. Whether it is heavy and bulky heavy-duty items, or light and delicate micro items, it can handle them easily. Its service life is up to 10 million times, and it will not fail even under extreme load, with first-class stability.



Output Cable: Side Wiring
Outgoing Line Method: Vertical Wiring
Stroke (mm): 40
Max.Gripping Force (N): 110
Max.speed (mm/s): 80
Repeat Positioning Accuracy (mm): ±0.05
Backlash (mm): < 0.1 ( Single-Side)
Permissible Load Torque: MR:8.0,MP:5.9,MY:5.9
Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Interface: Input 2 Points(NPN), Output 3 Points(NPN)
Rated Voltage (V): DC24±10%
Rated Current(A): 2
Weight (kg): 1.1
Usage Environment: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
