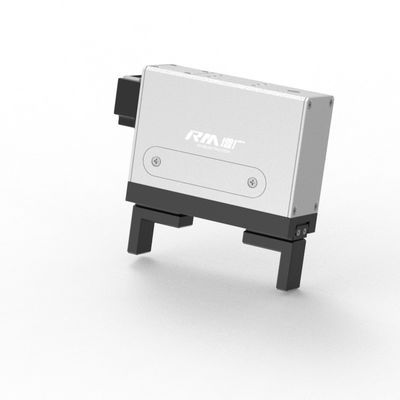

RobustMotion RM-GB 2-Jaw Parallel Grippers Featuring High-Rigidity and Self Locking Mechanism

Solid Servo Electric Gripper with Anti-Drop Mechanism and Drop Detection System RM-GB-11-40-2-2-S0028

RobustMotion RM-GB Electric Gripper Featuring High-Rigidity Servo Clamping Mechanism

Servo Clamping Jaw (RM-GB-11-40-2-2-S0028) is a high-performance electric clamping jaw, which shows excellent advantages with efficient control and powerful clamping force. It has outstanding advantages such as high rigidity, high load, high precision, high reliability, etc., and can cope with various complex working environments; from miniature to heavy-duty type, it provides a variety of optional strokes, with a wide range of specifications to meet different needs; it can be adapted to a variety of collaborative robots and industrial robots, to complete all kinds of assembly, transport, palletising and other processes of different weights of items. It has a clamping stroke of 30mm, a guide length of 2, a bottom exit position, and a horizontal exit mode.

RM-GB is a controller-built clamping jaw with a maximum payload of up to 7kg, 2-3 times its own weight, and a maximum clamping force of 110N, making it unique among similar products. It can easily cope with both bulky and heavy heavy items as well as delicate and lightweight miniature items. It has a service life of up to 10 million cycles, even under extreme loads, without failure and with first-class stability.

Output Cable: Bottom Wiring

Outgoing Line Method: Adapter Wiring

Stroke (mm): 40

Max.Gripping Force (N): 110

Max.speed (mm/s): 80

Repeat Positioning Accuracy (mm): ±0.05

Backlash (mm): < 0.1 ( Single-Side)

Permissible Load Torque: MR:8.0,MP:5.9,MY:5.9

Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM

Interface: Input 2 Points(NPN), Output 3 Points(NPN)

Rated Voltage (V): DC24±10%

Rated Current(A): 2

Weight (kg): 1.1

Usage Environment: 0~40℃,< 85%RH ( Without Condensation)

Protection Class IP: IP40



1.The data is sourced from the actual test results in the 25℃ laboratory.Notes:
2.The drawings provided in this Catalogue are for the default standard model. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawings for the optional models.
