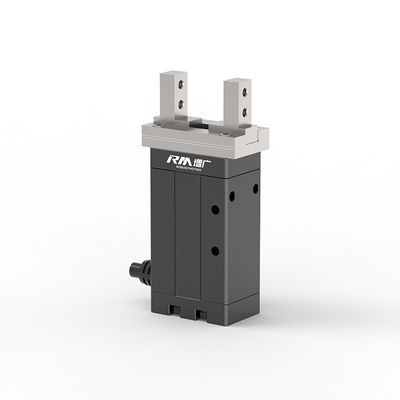

RM-EGB Compact Electric Finger with Soft Force for 3C Electronics Components, Works with Industrial Robots

2 pieces/sets
MOQ
Negotiable
Price
RM-EGB Compact Electric Finger with Soft Force for 3C Electronics Components, Works with Industrial Robots
Features Gallery Product Description Request A Quote
Features
Specifications
Position Of Exit: Side Wiring
Stroke(mm): 10
Gripping Force(N): 6/30/60/85 (adjustable)
Absolute Positioning Position: 0/4/8 (adjustable)
Position Repeatability (mm): ±0.02
Max.Opening/Closing Speed(s): 0.18/0.18
Allowable Static Torque Of The Fingers(N.m): MR: 2.65, MP: 2.35, MY:1.65
Rated Voltage (V): DC24±10%
Rated Current (A): 0.4
Peak Current (A): 0.8
Weight (KG): 0.32
Usage Environment: 0~40℃、< 85%RH Or Less
IP Level: IP40
Highlight:

Industrial Micro Servo Gripper

,

Micro Servo Gripper IP40

Basic Infomation
Place of Origin: China
Brand Name: RobustMotion®
Certification: CE, RoHs
Model Number: RM-EGB-06L-20D-1-D0200-ITG
Payment & Shipping Terms
Delivery Time: 5-15work days
Payment Terms: Bank transfer
Supply Ability: TBC
Product Description

Large Gripping Force Small Size,High Output Micro Servo Gripper RM-EGB-06L-20D-1-D0200-ITG

The RM-EGB is designed to be versatile and adaptable, making it suitable for a wide range of applications. Its large gripping force and stroke allow it to handle various types of workpieces, from small components to larger objects. The easy wiring and drop/empty gripping recognition features make it user-friendly and efficient to operate.

The gripper's high rigidity ensures stable and reliable performance, even in demanding industrial environments. Its industrial-grade construction ensures a long lifespan, with the ability to withstand up to 10 million cycles of use. This durability reduces the need for frequent maintenance and replacement, contributing to increased productivity and cost savings.

By replacing traditional air jaws with the RM-EGB, companies can streamline their assembly processes and reduce overhead costs associated with maintenance. The gripper's outstanding innovation and disruption make it a cutting-edge solution in the field of automation.

Overall, the Large Clamping Compact Electric Finger (RM-EGB-06L-20D-1-D0200-ITG) offers superior integration, convenience, and performance compared to traditional grippers. Its advanced features and capabilities make it an excellent choice for enhancing productivity and quality in industrial and automated environments.



Specifications
Position Of Exit: Side Wiring
Stroke(mm): 10
Gripping Force(N): 6/30/60/85 (adjustable)
Absolute Positioning Position: 0/4/8 (adjustable)
Position Repeatability (mm): ±0.02
Max.Opening/Closing Speed(s): 0.18/0.18
Allowable Static Torque Of The Fingers(N.m): MR: 2.65, MP: 2.35, MY:1.65
Rated Voltage (V): DC24±10%
Rated Current (A): 0.4
Peak Current (A): 0.8
Weight (KG): 0.32
Usage Environment: 0~40℃,< 85%RH Or Less
IP Level: IP40
RM-EGB Compact Electric Finger with Soft Force for 3C Electronics Components, Works with Industrial Robots 0
