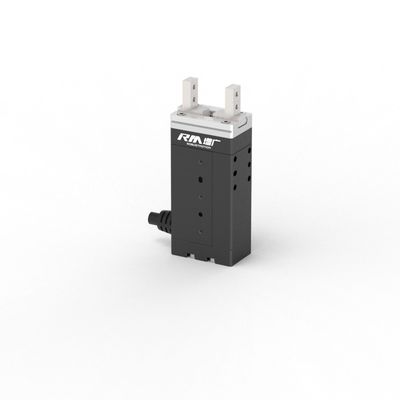

RM-EGB Servo Miniature Electric Fingers : 4-Stage Adjustable Gripping Force for Clamping Sensitive Workpieces

Micro Servo Gripper Miniature Electric Fingers Bottom Wire Outlet RM-EGB-06L-20D-1-D0200-ITG

A new compact electric gripper jaw, the Compact Electric Finger (RM-EGB-06H-16D-1-D0200), which is known for its ultra-high level of integration and outstanding innovation and disruption. The clamping force is adjustable in four levels of 6/30/60/85N, the fastest opening/closing time is 0.18/0.18, and the power outlet is 2 metres. It is not only more convenient in terms of size, quality and installation, but also better in terms of clamping force, speed and accuracy, which can effortlessly replace traditional air claws, reduce assembly difficulty and maintenance overheads, and increase productivity and quality.

RM-EGB can be used with industrial robots, collaborative robots or other automation equipment to achieve workpiece gripping, lifting, assembly, handling, loading and unloading functions. It has the advantages of large clamping force, large clamping stroke, easy wiring, drop/empty clamp recognition, high rigidity, etc., which far exceeds that of air grippers. It is highly integrated, easy to operate, stable and reliable, and is an industrial-grade electric gripper with a life span of up to 10 million cycles.



Specifications

Position Of Exit: Side Wiring

Stroke(mm): 10

Gripping Force(N): 6/30/60/85 (adjustable)

Absolute Positioning Position: 0/4/8 (adjustable)

Position Repeatability (mm): ±0.02

Max.Opening/Closing Speed(s): 0.18/0.18

Allowable Static Torque Of The Fingers(N.m): MR:2.65, MP:2.35, MY:1.65

Rated Voltage (V): DC24±10%

Rated Current (A): 0.4

Peak Current (A): 0.8

Weight (KG): 0.32

Usage Environment: 0~40℃,< 85%RH Or Less

IP Level: IP40

Outgoing Line Length: 2 M
