RM-NPLA Linear Servo Actuators, Reliable, Fast, and Accurate Force Control Servo Electric Cylinder

Electrical Linear Actuator High-speed and Smooth RM-NPLA-10-50-2-L-S0028

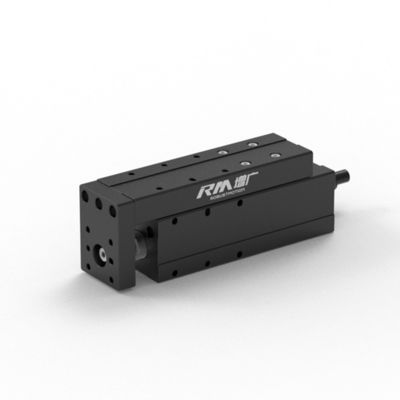

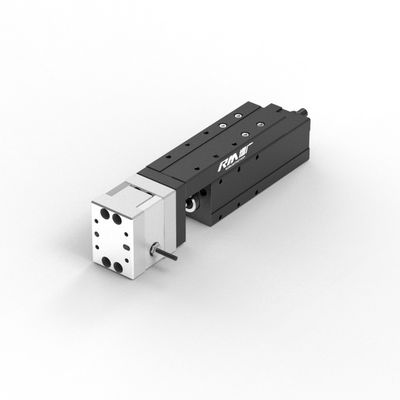

The Miniature Platform Actuator (RM-NPLA-10-50-2-T-S0028) is an industrial automation device that is compact, efficient and flexible for precise positioning and movement of workpieces. It has a push stroke of 50mm, a lead of 2, a tail direction, an adapter and a line length of 2.8 m. It is compact and lightweight, suitable for applications where space is limited or where careful control is required, and can be widely used in the fields of 3C electronics, industrial manufacturing, automotive manufacturing, cosmetic and food production, and medical equipment, among others.

The miniature platform-type actuator adopts advanced actuator drive technology to achieve rapidity, stability and accuracy of linear motion. It has high resolution and precision positioning capability, and can complete pushing and positioning tasks with micron-level accuracy. It also has adjustable push force and speed, which can be flexibly adjusted according to customer needs.

Stroke(mm): 50

Lead (mm): 2

Max.speed (mm/s): 100

Max. Pushing Force (N): 110

Max. Load Capacity Horizontal: 3

Max. Load Capacity Vertica: 2

Repeat Positioning Accuracy (mm): ±0.005

Permissible Load Torque (N.m): MP: 9.75, MR: 11.31, MY: 3.75

Compatible Controllers: RM-CEU, RM-CEM

Rated Voltage (V): DC24±10%

Rated Current (A): 1.25

Model Length (m): 3/5(Optional)

Weight (kg): 0.6

Usage Environment: 0~40℃,< 85%RH ( Without Condensation)

Protection Class IP: IP40
