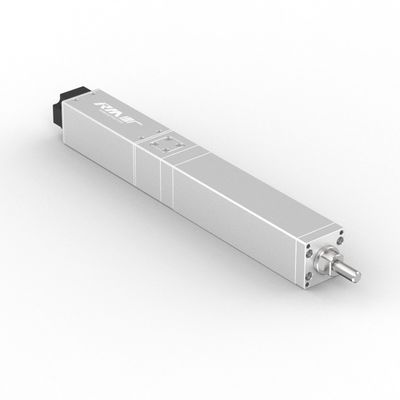

RobustMotion RM-SLA Straight Linear Actuator, 24V Servo Motor, 100 mm Stroke, Max Pushing Force 300N

2 pieces/sets
MOQ
Negotiable
Price
RobustMotion RM-SLA Straight Linear Actuator, 24V Servo Motor, 100 mm Stroke, Max Pushing Force 300N
Features Gallery Product Description Request A Quote
Features
Specifications
Stroke (mm): 100
Lead (mm): 2
Max.speed(mm/s): 100
Max. Pushing Force(N): 300
Maximum Vertical Load Mass (kg): 1.5
Repeat Positioning Accuracy (mm): ±0.02
Pusher Rotation Accuracy(° ): ±1.5
Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltage (V): DC24±10%
Rated Current (A): 2
Weight (kg): 0.9
Usage Environmen: 0~40℃、< 85%RH ( Without Condensation)
Protection Class IP: IP40
OEM/ODM: YES
Highlight:

OEM Electric Linear Actuator

,

ODM Electric Linear Actuator

,

Linear Actuator Servo Motor Controlled

Basic Infomation
Place of Origin: China
Brand Name: RobustMotion®
Certification: CE, RoHs
Model Number: RM-SLA-11-100-2-S0028-ITG
Payment & Shipping Terms
Delivery Time: 5-15work days
Payment Terms: Bank transfer
Supply Ability: TBC
Product Description

Electric Linear Actuator For Adaptive Pushing Applications RM-SLA-11-100-2-S0028

The RM-SLA-11-100-2-S0028 Straight Linear Actuator is an advanced electric actuator designed for precise linear motion and position control. Its servo motor speed and direction can be easily controlled, allowing for precise and accurate movement. This actuator offers several key features, including high repeatability, adaptability in pushing tasks, confirmation of successful pushing, and a large output range.

In automated production lines, the RM-SLA-11-100-2-S0028 actuator plays a crucial role in completing various tasks. It is especially useful in fitting, pressing, correcting, and linear transmission of workpieces. By utilizing its linear pushing and pressing capabilities, it excels in ensuring smooth and efficient operations within the production line.



Specifications
Stroke (mm): 100
Lead (mm): 2
Max.speed(mm/s): 100
Max. Pushing Force(N): 300
Maximum Vertical Load Mass (kg): 1.5
Repeat Positioning Accuracy (mm): ±0.02
Pusher Rotation Accuracy(° ): ±1.5
Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltage (V): DC24±10%
Rated Current (A): 2
Weight (kg): 0.9
Usage Environmen: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
Outgoing Line Method: Adapter Wiring
