RobustMotion RM-RLA Compact Electric Linear Actuator with Adapative Pushing for 3C Electronic

Foldable Electric Linear Actuator with Rapid Response and Versatile Pushing Adaptability RM-RLA-11-150-2-L-H

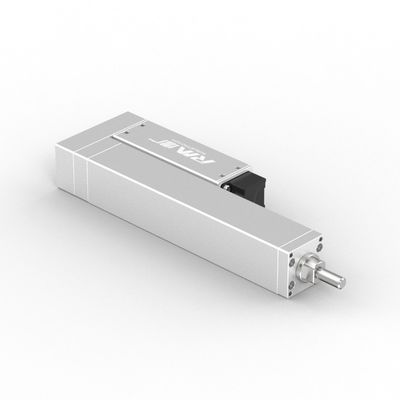

Folding linear actuator (RM-RLA-11-150-2-L-H) is a versatile and compact push rod designed for automated production applications. It features a folding structure that allows for efficient space utilization while ensuring effective operation. With a pushing stroke of 150mm, the actuator is capable of precise linear movement.

The actuator is equipped with a motor on the left side and utilizes a horizontal wire method for connectivity. This configuration enables quick response, adaptive pushing, and reliable stability even at high speeds. It is well-suited for a wide range of linear pushing and pressing actions, including fitting, pressing, correcting, and linear transmission of workpieces.

In summary, the RM-RLA-11-150-2-L-H folding linear actuator combines excellent design, minimal space occupation, and flexible functionality to enhance automation processes in various industries. If you have any further questions or need more information, feel free to ask.

Stroke (mm): 150

Lead (mm): 2

Max.speed(mm/s): 100

Max. Pushing Force(N): 300

Maximum Vertical Load Mass (kg): 1.5

Repeat Positioning Accuracy (mm): ±0.02

Pusher Rotation Accuracy(° ): ±1.5

Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM

Rated Voltage(V): DC24±10%

Rated Current (A): 2

Weight (kg): 1.3

Usage Environment: 0~40℃,< 85%RH ( Without Condensation)

Protection Class IP: IP40
