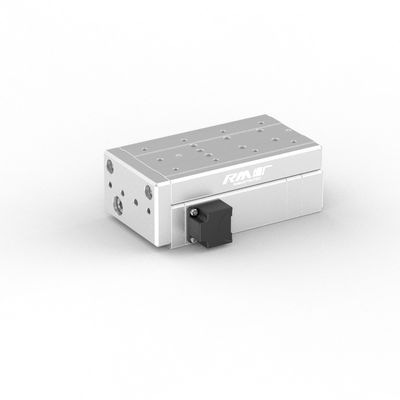

RobustMotion RM-WRPLA Electric Linear Actuator, Table Type, Stroke 50mm, Pushing Force up to 300N

2 pieces/sets
MOQ
Negotiable
Price
RobustMotion RM-WRPLA Electric Linear Actuator, Table Type, Stroke 50mm, Pushing Force up to 300N
Features Gallery Product Description Request A Quote
Features
Specifications
Stroke (mm): 50
Lead (mm): 2
Max.speed (mm/s): 100
Max. Pushing Force1(N): 300
Max. Load Capacity Horizontal (kg): 6
Max. Load Capacity Vertical: 0.5
Repeat Positioning Accuracy (mm): ±0.02
Permissible Load Torque (N.m): MR: 9.11, MP: 13.67, MY:13.67
Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltage (V): DC24±10%
Rated Current (A): 2
Weight (kg): 1.6
Usage Environment: 0~40℃、< 85%RH ( Without Condensation)
Protection Class IP: IP40
Outgoing Line Method: Horizontal Wiring
Types Of Screws: Ball Screw
Highlight:

50mm Electric Linear Actuator

,

300N Electric Linear Actuator

,

Table Type Electric Linear Actuator

Basic Infomation
Place of Origin: China
Brand Name: RobustMotion®
Certification: CE, RoHs
Model Number: RM-WRPLA-11-50-2-S0028
Payment & Shipping Terms
Delivery Time: 5-15work days
Payment Terms: Bank transfer
Supply Ability: TBC
Product Description

Wide Frame Structure Electric Linear Actuator Adaptive Pushing RM-WRPLA-11-50-2-H

The RM-WRPLA-08-50-8T-R-S0028 is a wide platform-type linear actuator that offers exceptional performance and versatility. With a transfer wire outlet and a wire length of 2.8m, it provides flexibility in various applications. The standout feature of this actuator is its large working platform, which distinguishes it from standard electric push rods. This platform enables the actuator to handle higher lateral loads with ease and provides abundant working space for different operations. Moreover, the platform design allows for hassle-free installation of various devices and ensures their solidity and reliability. This makes the RM-WRPLA-08-50-8T-R-S0028 an excellent choice for moving or transporting large-scale workpieces, such as those found in automated assembly lines, material transport systems, and workpiece fixation and positioning.





Specifications
Stroke (mm): 50
Lead (mm): 2
Max.speed (mm/s): 100
Max. Pushing Force1(N): 300
Max. Load Capacity Horizontal (kg): 6
Max. Load Capacity Vertical: 0.5
Repeat Positioning Accuracy (mm): ±0.02
Permissible Load Torque (N.m): MR: 9.11, MP: 13.67, MY:13.67
Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltage (V): DC24±10%
Rated Current (A): 2
Weight (kg): 1.6
Usage Environment: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
Outgoing Line Method: Horizontal Wiring
Types Of Screws: Ball Screw
