RobustMotion RM-MGBR Micro Gripper, 180° Flexible Strobe for Handling Delicate Workpieces, Small Components Gripping

2 pieces/sets
MOQ
Negotiable
Price
RobustMotion RM-MGBR Micro Gripper, 180° Flexible Strobe for Handling Delicate Workpieces, Small Components Gripping
Features Gallery Product Description Request A Quote
Features
Specifications
Stroke (° ): 180 ( Single-Side 90)
Max.Gripping Force: 40
Repeat Positioning Accuracy (° ): ±0.1
BUS Control: Modbus RTU
Interface: Input 2 Points(NPN), Output 3 Points(NPN)
Rated Voltage(V): DC24±10%
Rated Current (A): 2
Weight (kg): 0.7
Usage Environment: 0~40℃、< 85%RH ( Without Condensation)
Protection Class IP: IP40
Highlight:

Rotary Electric Gripper Actuator

,

Electric Gripper Actuator Soft

,

Micro Rotary Gripper Actuator

Basic Infomation
Place of Origin: China
Brand Name: RobustMotion
Certification: CE, RoHs
Model Number: RM-MGBR-11-180-S0028-ITG
Payment & Shipping Terms
Delivery Time: 5-15work days
Payment Terms: Bank transfer
Supply Ability: TBC
Product Description

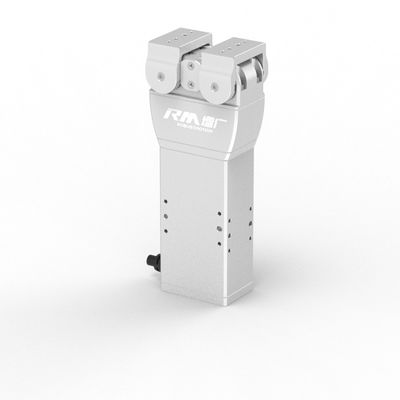

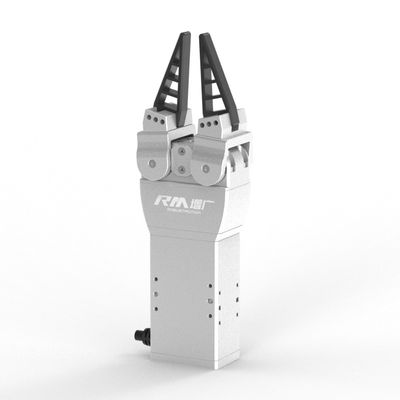

Servo Electric Rockover Micro Soft Gripper Flexible Stroke RM-MGBR-11-180-S0028-ITG



Micro gripper - rotary(ITG) (RM-MGBR-11-180-S0028-ITG) is an intelligent electric gripper with a built-in controller, featuring an enveloping structure design, a wide opening range, and a stable gripping force. It can tightly surround objects and provide stable gripping force, making it very suitable for gripping, handling, and assembling fragile and soft items with delicate surfaces.

Micro gripper - rotary(ITG) (RM-MGBR-11-180-S0028-ITG) has high flexibility and adjustability, and can adjust the gripping force according to the size and material of the workpiece. It can achieve precise grasping and releasing operations for irregularly shaped fragile items, reducing the risk of accidental damage, and improving work efficiency and product quality.



Specifications
Stroke (° ): 180 ( Single-Side 90)
Max.Gripping Force: 40
Repeat Positioning Accuracy (° ): ±0.1
BUS Control: Modbus RTU
Interface: Input 2 Points(NPN), Output 3 Points(NPN)
Rated Voltage(V): DC24±10%
Rated Current (A): 2
Weight (kg): 0.7
Usage Environment: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
