RobustMotion RM-CGBD Servo Electric Gripper, Large Stroke for Various Shaped Workpieces

2 pieces/sets
MOQ
Negotiable
Price
RobustMotion RM-CGBD Servo Electric Gripper, Large Stroke for Various Shaped Workpieces
Features Gallery Product Description Request A Quote
Features
Specifications
Outgoing Line Method: Adapter Wiring
Stroke (mm): 90
Max.Gripping Force (N): 100
Repeat Positioning Accuracy (mm): ±0.1
Compatible Controllers: RM-C-40, RM-CEP-40, RM-CEU, RM-CEM
Rated Voltage (V): DC24±10%
Rated Current (A): 4
Weight(kg): 1.6
Usage Environment: 0~40℃、< 85%RH ( Without Condensation)
Protection Class IP: IP40
Highlight:

IP40 Electric Gripper Actuator

,

Intelligent Electric Gripper Actuator

,

Electric Gripper Actuator With Extended Stroke

Basic Infomation
Place of Origin: China
Brand Name: RobustMotion®
Certification: CE, RoHs
Model Number: RM-CGBD-17-100-S0028
Payment & Shipping Terms
Delivery Time: 5-15work days
Payment Terms: Bank transfer
Supply Ability: TBC
Product Description

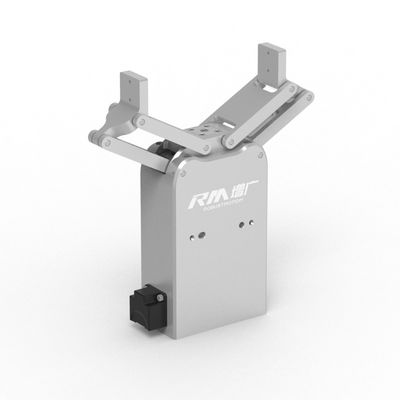

Large Stroke Servo Electric Gripper Adaptive Gripping RM-CGBD-17-100-S0028

RM-CGBD-17-100-S0028 is an intelligent gripper with a wide opening and closing stroke, which can achieve a clamping range of 0-90mm, with an adapter cable and a cable length of 2.8m. It is suitable for various sizes of objects, which improves the gripping range and working flexibility.



It is easy and convenient to operate, no need for cumbersome settings, plug and play, built-in 10+ practical control functions, such as adaptive clamping, drop detection, power-down hold, self-tuning, torque automatic return to the original, and so on. It can work with single-axis/collaborative/industrial robots to complete the assembly, transport, palletising and other processes of various workpieces.



Specifications
Outgoing Line Method: Adapter Wiring
Stroke (mm): 90
Max.Gripping Force (N): 100
Repeat Positioning Accuracy (mm): ±0.1
Compatible Controllers: RM-C-40, RM-CEP-40, RM-CEU, RM-CEM
Rated Voltage (V): DC24±10%
Rated Current (A): 4
Weight(kg): 1.6
Usage Environment: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
